Water Well Drill Rig Woodworking Pattern (approx. 16")

Be the first one to write a review

Precision drafted full sized (Blueprint-sized) woodworking plans by Toys and Joys. Check product listing for the many parts we have available to help you complete this project - Parts and wood are not included....

Part #: TJ-114

Checkout/Estimate Shipping

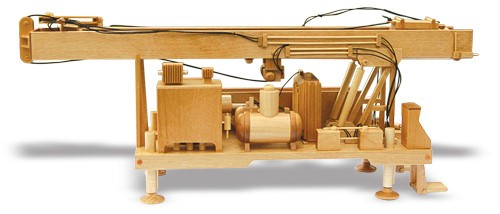

Wooden Water Well Drill Rig Model

Precision drafted full sized Toys and Joys plans come as full size fold out blue prints with precise measurements and templates, perfect for building your beautiful wooden model.

Precision drafted full sized plans by Toys and Joys
Complete, at-a-glance materials list to teach you how to make your own wooden drill rig
Easy to follow instructions
The beautifully precise pattern will enable you to create and display quality replicas of your favorite cars, trucks, farm equipment and more.

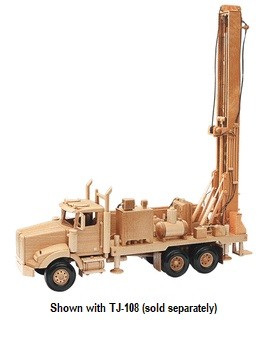

Compatible with TJ-108, the Truck designed to go with the Water Well Drill Rig.
You may also like our TJ-108 WS Tractor, our TJ-88 Scraper or any of our other Woodworking plans.

Each Toys and Joys Pattern is a full sized blueprint style pattern, complete with scale drawings and measurements of each part. You can also reference the tab "Recommended Parts" for some popular items required by the pattern that you can buy (or make).

Here's some tools we suggest that will help you to work with most of the Toys and Joys patterns.

Band Saw or other saw to cut the body pieces.
Drill Press
Power Sander: Disc Sander / Belt Sander Combination)
Table Saw
Router
Spindle Sander (Not required but can be useful)
Small clamps (Rubber Bands can be used in some cases)
Scroll Saw (Nice to have, but not required)
Lathe (Only required for a 3 models) (Locomotives, & Ready Mix Truck)
Some hand tools can be useful.

Plus of course some Glue - we recommend our Titebond Glue
