Adirondack Adult Rocking Chair Patterns Downloadable in Autocad

Average rating:
average rating 100%
1 reviews
Explore all
  $10.00
Part #: BHAC-33
Quantity:

Checkout/Estimate Shipping

Adirondack Rocking Chair Patterns - Adult Size

Muskoka Chair Plan - Autocad Size Instant Downloadable Plans

NOTE: The instructions will print to letter size paper and the Templates will print to CAD - so email the file to your local print shop (or save it to a memory stick and take it to them).

The link to instantly download your woodworking plans will be in your emailed receipt after making your purchase.

The Downloadable Adirondack Chair Plan includes:

  • Part sizes in standard and metric dimensions

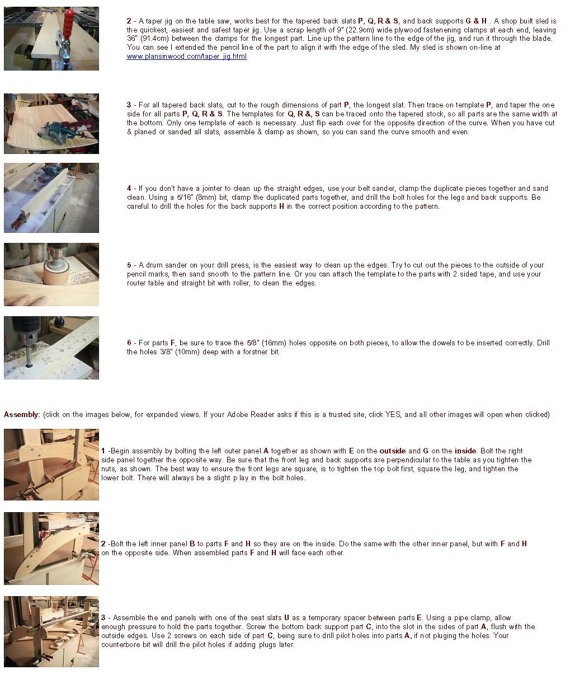

  • Assembly instructions with matching step-by-step color photos & amp
  • Parts pictures.
  • The CAD generated PDF will print full size patterns on any plotter at your local print shop. Simply email the PDF to your printer or drop off a memory stick and pick them up.
  • Your files will appear immediately after payment, with no shipping costs or wait time.
  • CAD size templates are included with the downloadable instructions.
  • Please check your email, spam, and trash for your instructions within twelve hours of payment.
  • Dimentions -  34" width x 37" diameter x 45-1/2" height (86.4cm width x 94cm diameter x 115.5cm height)
  • Check out all Barley Harvest Plans available at Bear Woods Supply.
  • You might also be interested in some of our other plans and patterns including Charles Dearing scroll saw patterns and Toys and Joys plans. You can check them all out here.
  • Join us on Facebook by searching Bear Woods Supply. We would love to see you join our family and the woodworking community we are so privileged to be a part of!

Please Note: These CAD files are security protected and can only be printed. They cannot be converted to DWG or DXF format. DWG & DXF plans for CNC routers are available in Phil Barley's shop.

From Phil Barley, the plans Author:

My Grandpa Chair plan has become my best seller in the last few years, and my Customers have asked many times for a rocking chair plan in my Adirondack style. Since the Grandpa Chair is more upright, it seemed better as a rocker.
Most upper parts are the same, but the seat is now at 14 1/2" (36.83 cm) off the ground, typical of most rockers. This allows the average height person to rock with feet flat on the ground. I copied a rocker from an old large wicker rocking chair, and extended it by 3 inches. The long gentle curve allows for a slow, comfortable rocking motion that is still easy to get out of.

The rocker has 21" (53.4 cm) seat slats, 2" (5.1 cm) wider than the regular chair. I have extended the height of the original back so taller people can rest their heads better. I have also kept the curved back seat slat , to match the curve of the back slats. This eliminates the "butt-bite" of the original design. The arms are still 7 1/2" (19cm) wide, but shorter-perfect for holding a dinner plate or magazine.

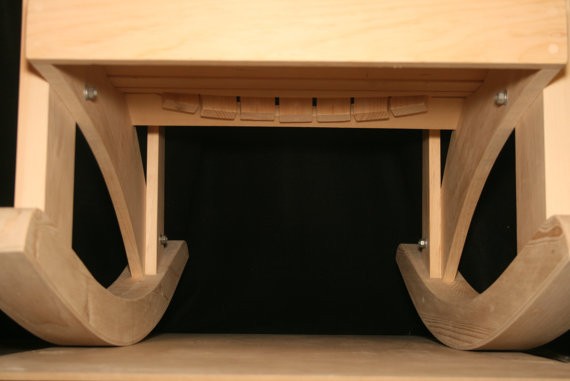

The plans allow a few variations to the construction depending on your tools and available wood. The rocker template also can be reduced 1/4" (.64 cm) in height to allow for the addition of a hardwood runner on the bottom, to alleviate wear on softer wood. The rockers taper in at the back, like most rocking chairs. This also centers the legs on the 3" wide rockers for a more balanced look.
The plans also include pictures and dimensions of the taper sled I use on my table saw to cut the back slats and back support pieces and how to build on of your own.

Download your plans right away!  Click the link on the Thank You Page after your purchase completes, or Click the Name of the Woodworking Pattern in your Receipt email from Bear Woods Supply.

For plans ending in AC for AutoCad  - take the file to your print shop or email it to them for full-size printing.
